AEOLUS-750L

  • AEOLUS-750L
AEOLUS-750L
Voltage: 220V/50HZ
Power: 750W
Delivery Time: 7-10days
Payment Way: T/T or Cash
Noise: 67dB
N.W: 26
G.W: 35KG
Package: Plywood
Package Size: 54*38*70cm
  • Product introduction

AEOLUS Series Dental Suction System’s Advantages

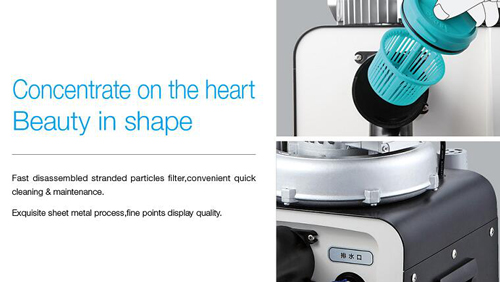

1. Efficient separation,Compact structure,Low use-cost
Let air and liquid separate in the small room.Separation system and vacuum pump is connected in the same central driving sharft,don’t need instal separation system in the dental unit,don’t need any other traditional system’s working cost---as water pump
2. Strong Power
Adopt width voltage and double frequence,motor with protection leve IP55(insulation grade F) as drive,accomplish turbine circulation suction power,lower noise, higher pressure,larger flowing. Offer the constant suction power for treatment

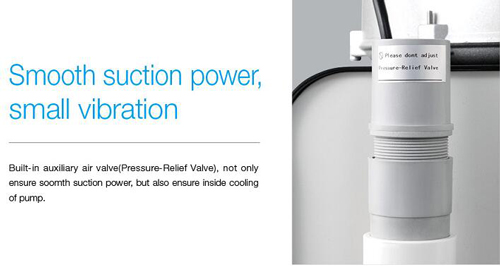

3. Regulation and cooling
Bulit-in auxiliary air valve,not only regulate suction power of system,but also ensure inside cooling of pump.
4. Corrosion resistance
Separation system adopt high grade engineering plastics,corrosion resistance,long use-life time

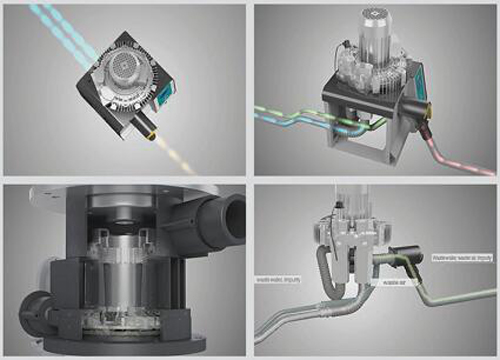

5. Two stage separation system
Innovative two stage separation system,have higher foam tolerance,ensure out-air without any water,avoid pump damage.




Technical Parameter

Model

AEOLUS-750L

Voltage

220V/50HZ

Current

4.1A

Pump Power

750W

Revolution

2800r/min

Noise

67dB

Max Vacumm

-12kPa

Connect  dental unit Quantity (Simultaneous use 60%)

2

connect dental unit quantity (simultaneous use 100%

1

N.W

26Kg

Product Size

49*31*66cm

Package Size

54*38*70cm

Order NO.

8.12.02/8.12.03
