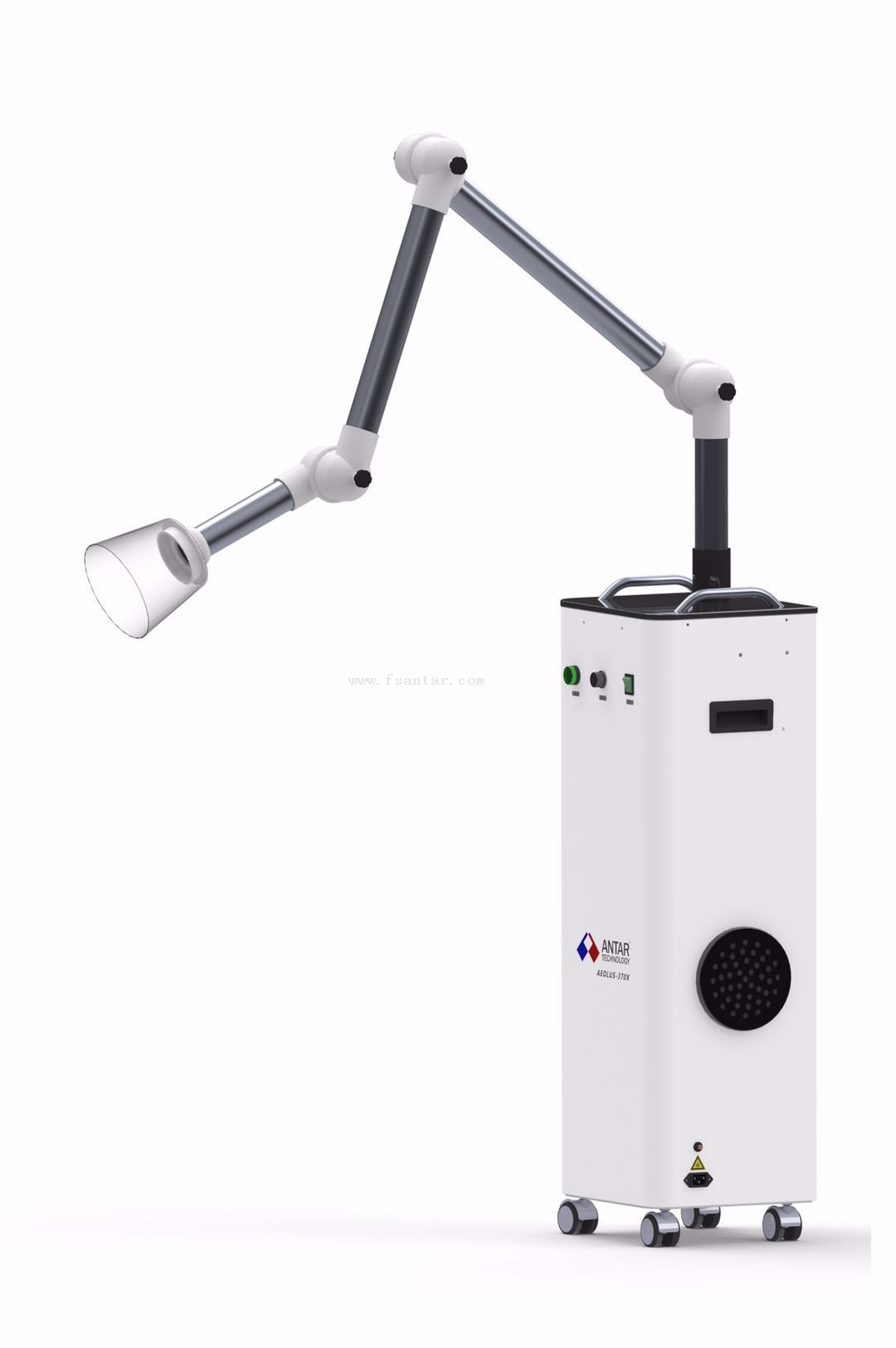

AEOLUS GUARDIAN External Oral Aerosol Suction Medical Person Guardian, Droplet & Aerosol Terminator, Dental Clinic Restoration Artifact.Strong Suction Power with 3-step Disinfection.
Medical Person Guardian: High volumes of droplets & aerosols are produced by handpiece & ultrasonic Scaler during the treatment. It serious affect the Medical person & patient ‘s health.
Droplet & Aeroslo Terminator: External Oral Aerosol Suction can offer the high air flow’s suction power, Accomplish the zero spatter of local area,Cut off the pollution sources, it can effective avoid the corss infection
Dental Clinic Restoration Artifact: Efficient Filter,UV-C & Plasma sterilization, HEPA Filter , it effective avoid the aire corss infection.
Humanity Desgin:Multi angle & Flexible arm, it can run up to every angle in the treatment
Multifunctions with perfect combination :The tip with multifunctions desgin, 134°C sterilization, easy assemble & disassemble
Strong Suction Power with 3-step disinfection
1. 254nm UV Sterilization
2. 5000V Plasma Disinfection
3. HEPA Filter
Technical Parameter
Model | AEOLUS-750X |
Voltage/Frequency | 220V/50HZ | 220V/60HZ |
Power | 1.5KW | 1.75KW |
Current | 9A | 10A |
Max Air Flow (L/min) | 3500 | 4250 |
Max Vacuum ( Kpa) | -19 | -18 |
Max Pressur ( Kpa) | 20 | 18 |
Noise ( dB) | 64 | 70 |
Product Size ( cm) | 40 *38 *110 | 40 *38 *110 |
Package Size ( cm) | 46 *55 *112 | 46 *55 *112 |
N.W ( KG) | 45 | 45 |
G.W ( KG) | 65 | 65 |
Suction Pipeline’s Diameter (mm) | 50 |
HEPA FIlter Efficiency | 99.97% |
UV Sterilization | 254nm |
Plasma Disinfection | 5000V |
UV Light’s use-life (H) | 8000~12000 |
HEPA Filter Element’s use-life (Month) | 2~3 |
working principle

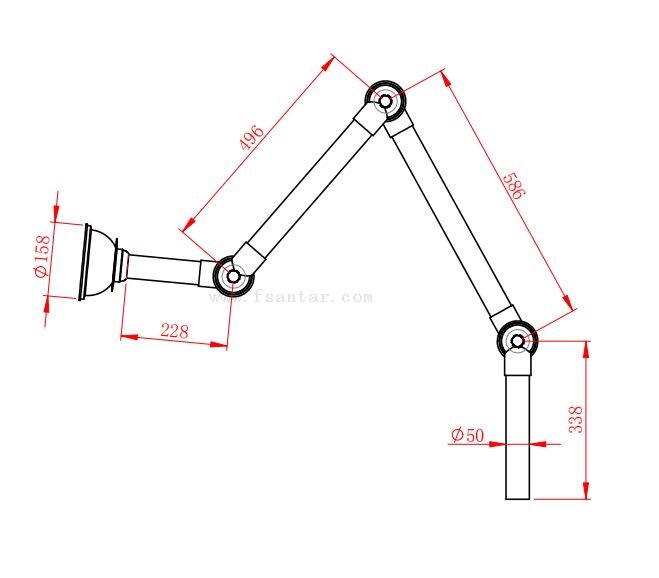

Suction pipeline’s size
